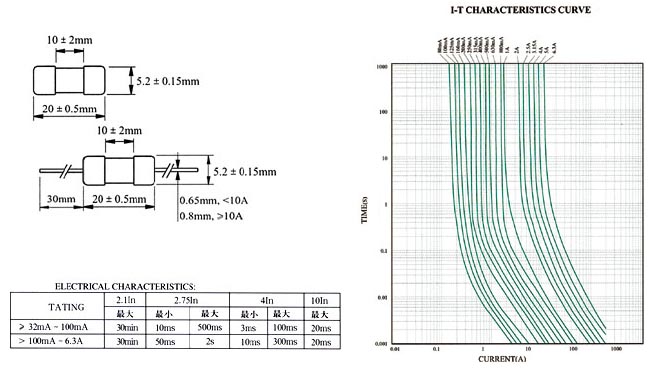

RF1-20(RF2-20) Outer weld Φ5.2×20 Glass Tube Fuse (Quick-acting) FBGTF(1019, 1020)
FBGTF(1019,1020)
-
Description
INTERRUPTING RATING:
35A OR 10In WHICHEVER IS GREATER
3C/VDE/SEMKO
Appliance Lamp HolderFBGTF1019-0100 FBGTF1019-0125 FBGTF1019-0150 FBGTF1019-0160 FBGTF1019-0200 FBGTF1019-0250 FBGTF1019-0300 FBGTF1019-0315 FBGTF1019-0350 FBGTF1019-0400 Rated Current100mA 125mA 150mA 160mA 200mA 250mA 300mA 315mA 350mA 400mA Rated Voltage3500 2100 2100 2000 1700 1400 1300 1300 1200 1000 Appliance Lamp HolderFBGTF1019-0600 FBGTF1019-0700 FBGTF1019-0750 FBGTF1019-0800 FBGTF1019-1000 FBGTF1019-1200 FBGTF1019-1250 FBGTF1019-1500 FBGTF1019-1600 FBGTF1019-1800 Rated Current600mA 700mA 750mA 800mA 1A 1.2A 1.25A 1.5A 1.6A 1.8A Rated Voltage650 650 600 240 200 200 200 200 190 190 Appliance Lamp HolderFBGTF1019-2000 FBGTF1019-2500 FBGTF1019-3000 FBGTF1019-3150 FBGTF1019-3500 FBGTF1019-4000 FBGTF1019-5000 FBGTF1019-6000 FBGTF1019-6300 FBGTF1019-7000 Rated Current2A 2.5A 3.0A 3.15A 3.5A 4.0A 5.0A 6.0A 6.3A 7.0A Rated Voltage170 170 150 150 150 130 130 130 130 120 Appliance Lamp HolderFBGTF1019-8000 FBGTF1019-10000 FBGTF1019-12000 FBGTF1019-15000 Rated Current8A 10A 12A 15A Rated Voltage100 100 100 100
