You are here: Home » Products » ELECTRONICS FUSE » Glass Tube Fuse » FBGTF(1015,1016)
-

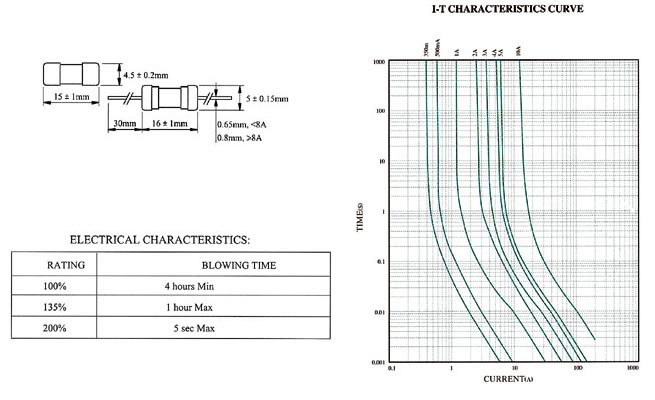

Φ4.5×15 Glass Tube Fuse (Quick-acting)FBGTF(1015, 1016)
FBGTF(1015,1016)
-
Description
INTERRUPTING RATING:
50 amperes at 300V AC (300mA-5A)
50 amperes at 250V AC (300mA-2.25A)
100 amperes at 250V AC (2.5A-5A)
100 amperes at 250V AC (1A-15A) MITI TYPE A
500 amperes at 125V AC (1A-15A) MITI TYPE A
UL/CSA/T-MARK
Appliance Lamp HolderFBGTF1015-0100 FBGTF1015-0125 FBGTF1015-0150 FBGTF1015-0160 FBGTF1015-0200 FBGTF1015-0250 FBGTF1015-0300 FBGTF1015-0315 FBGTF1015-0350 FBGTF1015-0400 Rated Current100mA 125mA 150mA 160mA 200mA 250mA 300mA 315mA 350mA 400mA Appliance Lamp HolderFBGTF1015-0500 FBGTF1015-0600 FBGTF1015-0700 FBGTF1015-0750 FBGTF1015-0800 FBGTF1015-1000 FBGTF1015-1200 FBGTF1015-1250 FBGTF1015-1500 FBGTF1015-1600 Rated Current500mA 600mA 700mA 750mA 800mA 1A 1.2A 1.25A 1.5A 1.6A Appliance Lamp HolderFBGTF1015-1800 FBGTF1015-2000 FBGTF1015-2500 FBGTF1015-3000 FBGTF1015-3150 FBGTF1015-3500 FBGTF1015-4000 FBGTF1015-5000 FBGTF1015-6000 FBGTF1015-6300 Rated Current1.8A 2.0A 2.5A 3.0A 3.15A 3.5A 4.0A 5.0A 6.0A 6.3A Appliance Lamp HolderFBGTF1015-7000 FBGTF1015-8000 FBGTF1015-10000 FBGTF1015-12000 FBGTF1015-15000 Rated Current7.0A 8.0A 10.0A 12.0A 15.0A
