You are here: Home » Products » ELECTRONICS FUSE » Mini Glass Tube Fuse » FBMGTF(1009,1010)
-

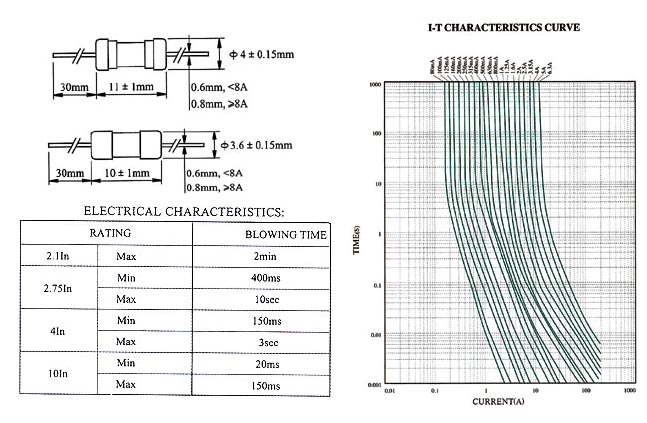

RT1-10(RF2-10)Φ3.6×10 Glass Tube Fuse (Time-delay) FBMGTF(1009, 1010)
FBMGTF(1009,1010)
-
Description
INTERRUPTING RATING:
50 amperes at 125V AC (250mA-10A)
50 amperes at 250V AC (250mA-10A)
3C/VDE/SEMKO
Appliance Lamp HolderFBMGTF1009-0100 FBMGTF1009-0125 FBMGTF1009-0150 FBMGTF1009-0160 FBMGTF1009-0200 FBMGTF1009-0250 FBMGTF1009-0300 FBMGTF1009-0315 FBMGTF1009-0350 FBMGTF1009-0400 Rated Current100mA 125mA 150mA 160mA 200mA 250mA 300mA 400mA 500mA 600mA Rated Voltage1750 1500 1500 1500 1500 1000 1000 1000 1000 900 Appliance Lamp HolderFBMGTF1009-0700 FBMGTF1009-0750 FBMGTF1009-0800 FBMGTF1009-1000 FBMGTF1009-1200 FBMGTF1009-1500 FBMGTF1009-1600 FBMGTF1009-1800 FBMGTF1009-2000 FBMGTF1009-2500 Rated Current700mA 750mA 800mA 1A 1.2A 1.5A 1.6A 1.8A 2A 2.5A Rated Voltage500 500 275 275 275 275 275 275 250 250 Appliance Lamp HolderFBMGTF1009-3000 FBMGTF1009-3150 FBMGTF1009-3500 FBMGTF1009-4000 FBMGTF1009-5000 FBMGTF1009-6000 FBMGTF1009-6300 FBMGTF1009-7000 FBMGTF1009-8000 FBMGTF1009-10000 Rated Current3A 3.15A 3.5A 4.0A 5.0A 6.0A 6.3A 7.0A 8.0A 10.0A Rated Voltage250 250 250 225 225 225 200 200 200 200 Appliance Lamp HolderFBMGTF1009-12000 FBMGTF1009-15000 Rated Current12.0A 15.0A Rated Voltage180 180
